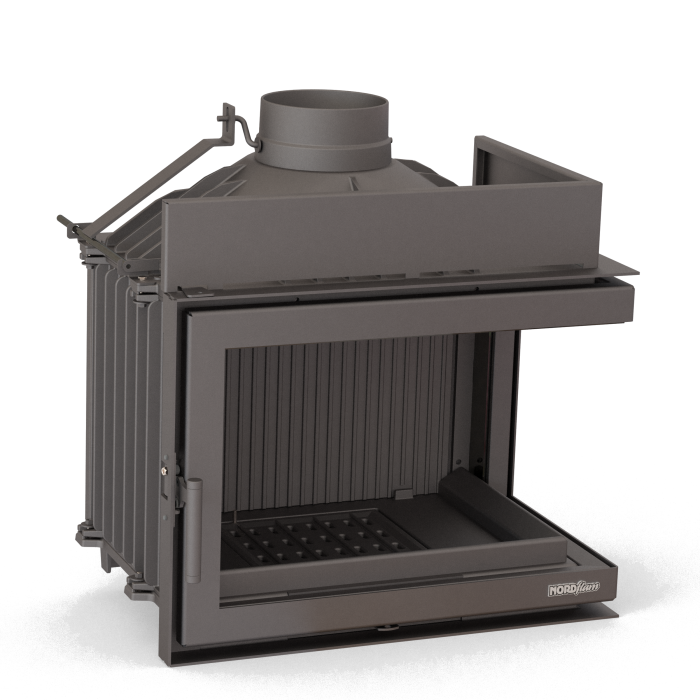

14 kW kW - Nominal output10 - 14 kW - Output range 74 % - Energy efficiency0,20 % - CO emission with 13% O2 380 °C - Fumes temperature 180 mm - Exhaust pipe diameter 140 m2 - Heating surface – parameter is based on the islation of the building (1kW x 10 m2)110 kg 683 x 510 x 694 mm Drewno, brykiet drzewny  - Seasoned hardwood, wood briquette100 mm - opcja  - CDP System - External air supply from outside. Using CDP system enables the insert to function independently from the air inside the building.

Using CDP we can adjust the efficiency of the product and lower the emission of harmful substances to the environment. The air from outside enters the furnace via stub pipe mounted at the base of the insert. The stub pipe can be installed under the base of or at the back of the insert.Deflector extends the fumes path, increasing the temperature reflected to the room, increasing the efficiencyFireguard protects the wood from falling out of the insertGrill separates the ash from the burning fuelHeat-resistant glass, withstanding the temperature up to 700°CSide glass Air curtain prevents the sooth from settling on the glass
Damper regulates the draught of the chimneyWarranty 5 years
